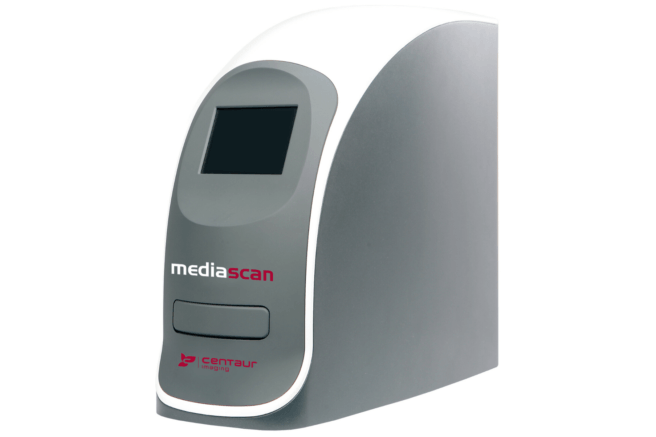

Introducing Mediascan Digital X-Ray Scanner with Push and Go functionality.
A compact digital x-ray scanner that delivers high – quality digital images for busy dental practices. No losing or mixing up patients files with the optional RFID reader. Network ready with touch screen panel for ease of use, coupled with the advanced Mediasuite Imaging software, Mediascan delivers uncompromising image quality at an affordable price.
Experience the benefits of high quality Digital Imaging with the familiar workflow & accessories that are equivalent to film, allowing seamless integration into your practice. With its small footprint, the scanner fits into even the most space-challenged dental offices and exam rooms.
In this increasingly competitive environment, show patients that your practice offers the latest in digital imaging technology for improved patient results. Coupled with the advanced Mediasuite software, Mediascan delivers uncompromising image quality at an affordable price.
Includes Mediasuite Professional Imaging Software (3 Licenses) - Plus
- Optimised workflow for your practice
- No cables increase patient comfort
- Auto-calibration ensures stability & consistency
- Built-in Erase Function
- Thin, flexible imaging plates
- Software optimises acquisition, processing & management
- Compatible with all intraoral sizes
- Imaging plates offer 100% active area
- Rapid, high-quality reading of reusable plates
- User-friendly LCD touch screen interface
- A full range of Image plate sizes available
- Supports both Ethernet & USB connections
Elegant Design & Streamlined Operation
Mediascan combines an elegant design with a powerful yet easy-to-use system. The automated, magnetised feeding tray offers push and go functionality, making it simple to operate for busy providers. The scanner is DICOM 3.0 compatible with existing systems and uses a full range of reusable bitewing and intraoral imaging plates that are easier and faster to position than intraoral digital sensors. Importantly, a true size 4c imaging plate is available, so providers don’t have to use software stitching to combine images from two size 3 plates—a cumbersome and inefficient process.
Unmatched Flexibility to Help Your Practice Grow
Whether you’re looking for a central scanner that can distribute images throughout your practice, or an affordable exam-room based solution, the next-generation Mediascan Digital X-Ray Scanner is the natural choice for practices looking for a full-featured system that delivers high-quality digital images—along with the flexibility that helps them grow.
Unique LCD Colour Touch Screen Panel
The Mediascan Digital X-Ray Scanner features a unique colour LCD touchscreen panel for seamless device operation. With no physical push buttons on the unit and an intuitive user interface, entering operator instructions has never been easier. The LCD screen provides device activity status and includes a sleep mode. It also presents a preview of the image, allowing providers to check the image and a settings menu which allows the provider to customise scanning resolution (high or standard), auto sleep timing, auto start and network settings.
Improving Efficiency for Dental Practices
The advanced technology of the Mediascan ID provides quick and accurate registration of data relevant to each individual patient. By pre-registering the unique tag code of the imaging plate on the Mediascan ID, key data is automatically matched to the correct patient file, including the scanned image, imaging plate size and the serial number of the imaging plate. The small, compact Mediascan ID is designed with ease of use in mind. Simply register each imaging plate before use, pairing it up with a patient and the correct image will show up in the correct patient file on the correct PC – every time. A great asset for big and medium sized clinics.
|Selectable Pixel Size||High: 35μm • Standard: 64μm
|Sampling Pixel Pitch (35μm)||14.3 lp/mm
|Readout time||4.1 ~ 7.2 sec
|Resolution||Data Capture: 16-bits per pixel, 65,000 graytones
|Dimensions (H x W x D)||10.4” x 4.7” x 12.5” / 265 x 120 x 318 mm
|Interface||USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps)tesql
|Software||Mediasuite Professional – 3 Licenses
|Computer workstation||Intel Core Duo/Core 2 Processor • Min. 80 Gigabytes Hard Disk, 2 Gigabyte RAM • Windows 7 (32-bit & 64-bit)
|Minimum requirements||NetCard (100 MBit), CD/DVD, 2 USB 2.0 ports • Monitor: 1,280×900 pixels, DVI Interface
|Power requirements||100 ~ 240V / 50 ~ 60Hz, 30W • UPS required
|Regulatory approvals||FDA 510(k) • CE (0120) • UL, cUL, FCC • KFDA • Australian TGA:ARTG No 222155
|Safety Standards||ISO13485 • ISO9001 • ISO14971 • 93/42/EEC • EN60601-1
|Operating conditions||Temp: 15-30 Deg. Celsius • Temp Gradient: 0.5 Deg. Celsius / Min. Humidity: 15%-95% RH • Magnetic Field: Max. 1260 Micro Tesla
Specific results may vary since operating conditions fluctuate.
